Industrial Automation
Machine Vision AI
Development and Integration
Production camera pipelines, accelerated inference, and factory-system integration on Connect Tech Edge hardware
By Kara Price
Senior Marketing & Events Specialist | Content Strategy | Campaign Execution | Connect Tech Inc.
Technical review: Rob Callaghan, Chief Product Officer, Connect Tech Inc.
Key Takeaways
- CTai LABS engineers the complete machine vision path from optics and lighting through camera ingest, inference, decision logic, and factory-system integration
- Work can start with an idea, an inspection goal, existing cameras, a dataset, a trained model, a stalled proof of concept, or a production performance issue
- Connect Tech platforms with NVIDIA® Jetson™ modules provide MIPI CSI-2, GMSL, FPD-Link III, Ethernet, NVMe, and industrial I/O options for vision systems
- NVIDIA TensorRT™ and CUDA® can accelerate supported vision workloads after task accuracy and data movement are measured on the target platform
- Production validation covers image quality, timing, throughput, false decisions, data drift, sustained load, power, thermals, and downstream response
- The customer retains its application, data, models, product design, and intellectual property
CTai LABS helps manufacturers turn a machine vision idea, existing inspection station, or partially integrated model into a deployment-ready system on Connect Tech Edge hardware. This page explains the complete engineering path: optics and illumination, camera interfaces, Board Support Package and driver bring-up, synchronization, preprocessing, NVIDIA® TensorRT™ inference, decision logic, PLC or MES integration, validation, and production handoff. CTai LABS can start with only the desired outcome or join at any later point to select hardware, integrate sensors, repair a data path, optimize a model, establish acceptance criteria, or prepare a release for the factory floor.
Machine vision ai is a measurement and decision system
A production machine vision system uses cameras, lighting, and image processing to inspect parts, identify defects, and provide results to production-line controls. The complete chain includes part presentation, optics, lighting, exposure, sensor response, camera transport, timestamps, image processing, ai inference, postprocessing, confidence handling, reject or control logic, data retention, and operator feedback. Model accuracy matters, but it is only one property of the deployed measurement system.
Patrashko and Gurau (2026) reviewed more than 50 studies of machine-learning vision for robotic inspection and found strong technical potential, while also distinguishing controlled-study performance from the conditions of high-volume manufacturing. Shukla et al. (2025) identified dataset composition, anomaly diversity, domain shift, and resource requirements as continuing issues in industrial image anomaly detection. Hoang and Tan (2025) demonstrated that illumination remains a material variable even in current anomaly-detection pipelines. These findings support a practical rule: the production imaging process and the evaluation dataset must be designed together.
Where machine vision programs lose time
The image is not stable enough to measure
A model cannot compensate consistently for uncontrolled glare, blur, depth of field, vibration, rolling-shutter artifacts, product motion, contamination, or exposure changes. CTai LABS can define the imaging geometry, camera and lens requirements, illumination method, trigger path, exposure strategy, and physical mounting assumptions before training begins. Existing stations can be instrumented so image failures are separated from model failures.
The dataset does not represent the production process
Manufacturing defects are often rare, diverse, and costly to reproduce. Product variants, material lots, tooling wear, supplier changes, and seasonal lighting can shift the image distribution after launch. Zajec et al. (2024) evaluated few-shot learning for manufacturing defect detection, reflecting the practical need to learn from limited defect examples. CTai LABS can build an error taxonomy, sampling plan, annotation guide, train and test split, lineage record, and change-control process around the actual production states the system must distinguish.
Camera bandwidth and inference are sized separately
A vision station must sustain capture, transport, preprocessing, inference, postprocessing, recording, networking, and operator display at the same time. Peak model frames per second does not prove line-rate operation. CTai LABS measures frame age, drops, queue depth, copies, CPU and GPU contention, memory pressure, storage throughput, network traffic, power, and thermal behavior on the target Connect Tech system under representative production load.
The decision does not connect to production control
A bounding box or anomaly score is not yet a production action. The system needs a traceable part identifier, decision window, confidence rule, reject timing, PLC handshake, MES or historian record, operator state, fallback mode, and recovery process. CTai LABS can integrate RESTful API endpoints and program-specific industrial interfaces while keeping safety-related and deterministic control responsibilities in the appropriate control layer.

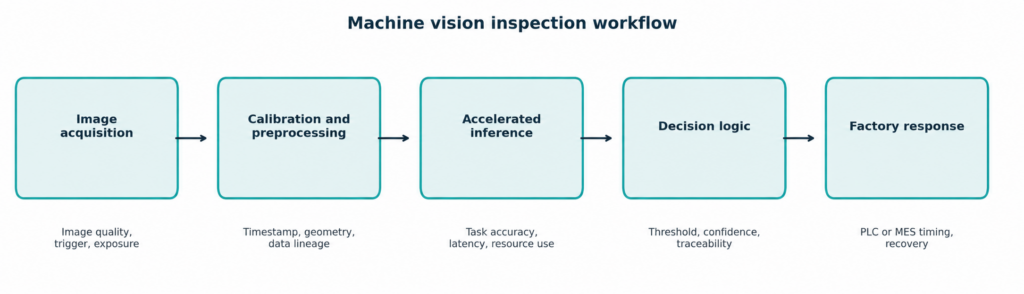

Figure 1. An example production machine vision pipeline is validated at each interface, from image formation through the factory response.
Architecture Through Deployment
The engagement is organized around your current evidence and the earliest high-risk interface. CTai LABS can begin before cameras or models are selected, or step into an existing station without discarding working components.
- Define the inspection or guidance outcome, cycle time, part presentation, defect or feature taxonomy, decision costs, data policy, and acceptance criteria.
- Select optics, lighting, camera interface, triggering, Connect Tech hardware, NVIDIA Jetsonâ„¢ module, storage, network, power, thermal design, and mechanical boundaries.
- Bring up the Board Support Package (BSPs), cameras, triggers, drivers, calibration, timestamps, data capture, preprocessing, and production interfaces.
- Train, adapt, integrate, or preserve the selected model, then optimize supported inference with TensorRT and CUDA® where measurements justify it.
- Validate image quality, task-level accuracy, false decisions, latency distribution, throughput, sustained load, data drift, restart, recovery, and downstream timing.
- Deliver the versioned software image, model and data lineage, validation evidence, operating limits, deployment procedure, and engineering handoff.
Connect Tech hardware for machine vision ai
Connect Tech hardware is part of each architecture because camera interfaces, data movement, storage, power, and thermal design determine what the vision pipeline can sustain. CTai LABS maps the imaging workload to the smallest platform that meets the complete operating envelope with appropriate headroom.
| Connect Tech platform | Best fit | Machine vision value |
|---|---|---|
| Hadron-DM or Boson with Jetson Orin NX | Compact one- or two-camera stations | Small production footprint with MIPI CSI-2 camera options, NVMe expansion, and Edge inference for distributed inspection points. |
| Lepton with Jetson Orin NX or Orin Nano | Compact FPD-Link III vision nodes | Supports remote-camera architectures where coax cabling, camera power, and compact local inference fit the machine design. |
| Forge with Jetson AGX Orin | High-throughput multi-camera inspection | Dual 10GbE, additional Ethernet, NVMe expansion, camera expansion, and AGX Orin compute for concurrent capture, inference, recording, and integration. |
| Gauntlet with Jetson Thor | Advanced multimodal and multi-model vision | Jetson Thor compute with high-speed networking and GMSL3/2, FPD-Link III, MIPI CSI-2, and SDI paths for demanding vision and reasoning workloads. |
Example Machine Vision AI Projects
High-speed assembly verification
A production line must verify component presence, orientation, fastener state, and label identity before a short reject window closes. CTai LABS defines the image and timing budget, integrates synchronized cameras and lighting on Forge, connects the decision to the part identifier and control interface, and validates missed events, false decisions, sustained load, restart, and recovery.
Distributed inspection across a packaging line
Several compact stations inspect fill level, seal condition, print quality, and final pack configuration. CTai LABS uses Hadron-DM, Boson, or Lepton class hardware where each station can process locally, then establishes a common software, model, logging, and update baseline across the line. Only the data required by the plant workflow is retained or forwarded.
Multi-camera 3D guidance for automation
A robot or gantry needs a stable pose estimate for parts with variable presentation. CTai LABS designs the camera geometry and calibration path, integrates depth or stereo processing, optimizes supported inference, and connects the output to the motion system through a bounded interface. Validation separates sensing error, calibration error, inference error, and motion-system response.
What CTai LABS can deliver
- Machine vision requirements, imaging and lighting specification, timing budget, error taxonomy, data plan, risk register, and acceptance matrix.
- Connect Tech platform and NVIDIA Jetson module selection with camera, optics, trigger, network, storage, power, thermal, and mechanical requirements.
- BSPs and driver baseline, camera bring-up, synchronization, calibration, preprocessing, data capture, and health monitoring.
- Integrated model runtime with TensorRT optimization where appropriate, postprocessing, confidence rules, part traceability, and factory-system interfaces.
- Representative validation dataset, task-level metrics, latency and throughput traces, sustained-load results, drift checks, and documented operating limits.
- Versioned software and model release, deployment image, regression suite, update and recovery procedures, documentation, and knowledge transfer.
Your Physical ai Integration Partner
CTai LABS combines Connect Tech camera hardware, in-house Board Support Package expertise, Edge ai engineering, model integration, and factory-floor validation in one production path. The team can begin with an idea, solve one imaging or inference problem, or carry the complete machine vision system from architecture through deployment while the customer retains its intellectual property.
Book a Demo
Bring your goal. Start with the outcome your machine vision program must achieve. CTai LABS, a department of Connect Tech, can begin with an early idea, an architecture decision, a working prototype, a difficult integration issue, or a system that needs to become deployment-ready.
What to bring:
- The feature, defect, pose, event, or process state the system must identify and the production action that follows.
- Cycle time, line speed, part presentation, viewing distance, lighting, motion, environmental, and maintenance conditions.
- Current cameras, lenses, lighting, triggers, Connect Tech or development hardware, NVIDIA Jetson platform, PLC, MES, and network constraints.
- Representative images, annotations, product variants, error examples, models, logs, and timing measurements already available.
- Accuracy, false-decision cost, latency, throughput, sustained-load, data-retention, release, and support criteria.
CTai LABS uses these inputs to identify the highest-risk interfaces first and define the shortest credible path to a working, measurable system.
ABOUT THE AUTHOR
Kara Price
Senior Marketing & Events Specialist | Content Strategy | Campaign Execution |
Connect Tech Inc.
Kara Price is a technology writer covering Edge AI, robotics, and embedded computing for Connect Tech and CTai LABS. Trained in journalism at Humber College with a BA in Communication Studies from Wilfrid Laurier University, she has spent over a decade writing for technical audiences, including four years as a proposal writer in architecture and engineering and ten years publishing product and technical announcements at Connect Tech, an NVIDIA Elite Partner. She is Senior Marketing and Events Specialist at Connect Tech.
Learn More
Resources and Frequently Asked Questions
Related
Sources
Connect Tech. (n.d.). Forge carrier board for NVIDIA Jetson AGX Orin. Retrieved August 21, 2026, from
https://connecttech.com/product/forge-carrier-for-nvidia-jetson-agx-orin/Connect Tech. (n.d.). Gauntlet carrier board for NVIDIA Jetson Thor. Retrieved August 21, 2026, from
https://connecttech.com/product/gauntlet-carrier-board-for-nvidia-jetson-thor/Connect Tech. (n.d.). NVIDIA Jetson Orin NX products. Retrieved August 21, 2026, from
https://connecttech.com/product-category/form-factors/nvidia-jetson-orin-nx/Hoang, D.-C., & Tan, P. X. (2025). Unsupervised industrial anomaly detection using paired well-lit and low-light images. Journal of Computational Design and Engineering, 12(5), 41–61.
https://doi.org/10.1093/jcde/qwaf043NVIDIA. (2026). TensorRT documentation.
https://docs.nvidia.com/deeplearning/tensorrt/Patrashko, D. Y., & Gurau, V. (2026). Machine learning-powered vision for robotic inspection in manufacturing: A review. Sensors, 26(3), 788.
https://doi.org/10.3390/s26030788Shukla, V., Shukla, A., S. K., S. P., & Shukla, S. (2025). A systematic survey: Role of deep learning-based image anomaly detection in industrial inspection contexts. Frontiers in Robotics and AI, 12, 1554196.
https://doi.org/10.3389/frobt.2025.1554196Zajec, P., Rožanec, J. M., Theodoropoulos, S., Fontul, M., Koehorst, E., Fortuna, B., & Mladenić, D. (2024). Few-shot learning for defect detection in manufacturing. International Journal of Production Research, 62(19), 6979–6998.
https://doi.org/10.1080/00207543.2024.2316279Frequently Asked Questions
Can CTai LABS start before cameras or models are selected?
Yes. CTai LABS can begin from the production decision, imaging geometry, cycle time, environment, and acceptance criteria, then select the camera path, Connect Tech platform, model strategy, and validation plan.
Can CTai LABS use our existing machine vision model?
Yes. CTai LABS can preserve the model and customer IP, integrate the surrounding image and decision pipeline, optimize supported inference, and measure task accuracy and system performance on the target platform.
Which camera interfaces can Connect Tech support?
Connect Tech offers platforms for MIPI CSI-2, GMSL3/2/1, FPD-Link III, SDI, HDMI, USB, and network cameras. The exact configuration depends on the camera, Jetson module, carrier, expansion board, driver, and Board Support Package. Visit Connect Tech Vision Solutions for more.
How is machine vision latency measured?
CTai LABS traces the complete path from exposure or trigger through image transport, preprocessing, inference, postprocessing, decision logic, communication, and the downstream response. Distributions and missed deadlines are more useful than one best-case number.
Can the vision system operate without a cloud connection?
Yes. CTai LABS can deploy capture, inference, decision logic, and local data handling on Connect Tech Edge hardware. External connectivity is included only where the production workflow requires it.
How does CTai LABS handle new product variants?
The release can include data and model lineage, variant-specific configuration, regression datasets, acceptance thresholds, monitoring, and an update process so changes are evaluated before they reach the line.
Who owns the machine vision intellectual property?
The customer retains its product, application, data, models, and intellectual property. Engagement deliverables and licensing boundaries are defined in the statement of work.
